Description
Description

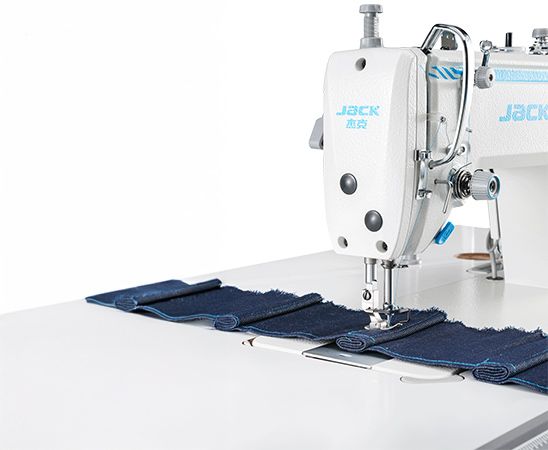

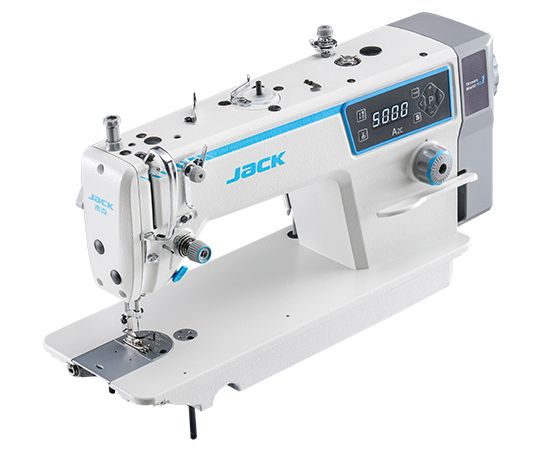

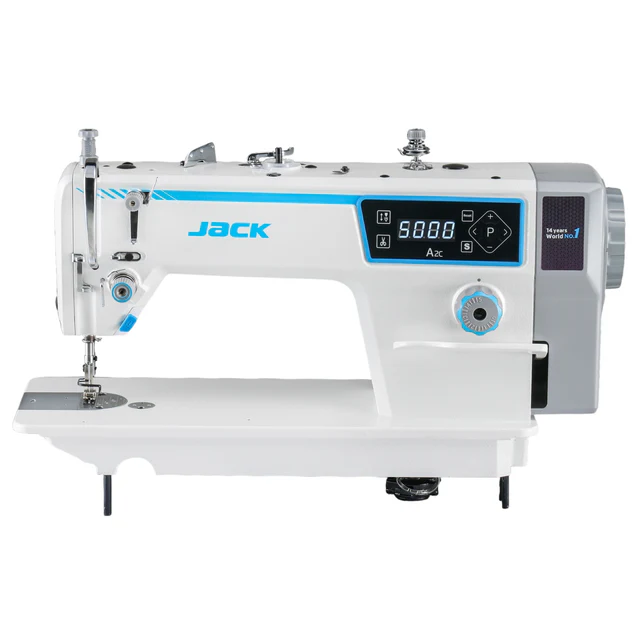

The JACK A2C-C is a high-speed, single-needle direct-drive industrial lockstitch machine equipped with an automatic thread trimmer. Featuring a high-torque direct-drive motor integrated into the machine head, it easily pierces thick fabric layers while running quietly and saving up to 70% in energy costs. With its durable electronics designed to handle voltage fluctuations and an automated trimmer that speeds up production, it is a reliable, high-efficiency workhorse for any sewing floor.
Key Features
-
Auto Thread Trimmer: Trims the thread instantly with a simple pedal tap, saving time and fabric.
-
High-Torque Power: Delivers 15% more piercing power (5.5 Nm) to glide through thick spots or overlapping seams easily.
-
Voltage Protection: Heavy-duty electronic PCB protects the machine against unstable voltage drops and spikes.
-
Smart Panel: Provides quick digital control over maximum sewing speed, auto-trimmer toggles, and needle positioning.
-
Inching Button: Conveniently located near the needle bar for perfect, stitch-by-stitch corner precision.
-
Built-in Hardware: Includes a top-mounted bobbin winder and a 3-level dimmable LED work light.
Technical Specifications
-
Max Speed: Up to 5,000 stitches per minute (fully adjustable)
-
Max Stitch Length / Lift: $5\text{ mm}$ length / $13\text{ mm}$ high clearance foot lift
-
Needle Type: DB×1 (Sizes #11 to #18)
Suitable for
-
Fabrics: Light to medium materials, but handles sudden heavy fabric layers easily.
-
Users: Fast-paced apparel workshops, busy tailor shops, and small production businesses looking to boost daily output via automatic trimming.
What’s Included
-
Jack A2C-C machine head with built-in motor, control panel, and auto-cutter assembly
-
Industrial laminated tabletop and heavy-duty structural steel stand
-
Vertical thread stand (double-cone)
-
Accessory kit (bobbins, DB×1 needles, oil reservoir, knee lifter, and tools)
